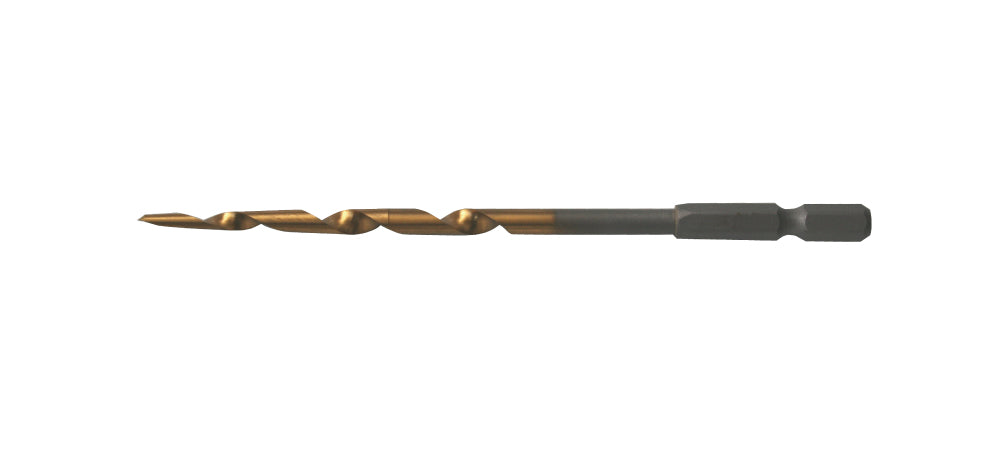

Star-M No.75HT H.S.S. Taper Point Bit (Titan Coating) / スターエム No.75HT ハイスチタンコーティング下穴錐
USE

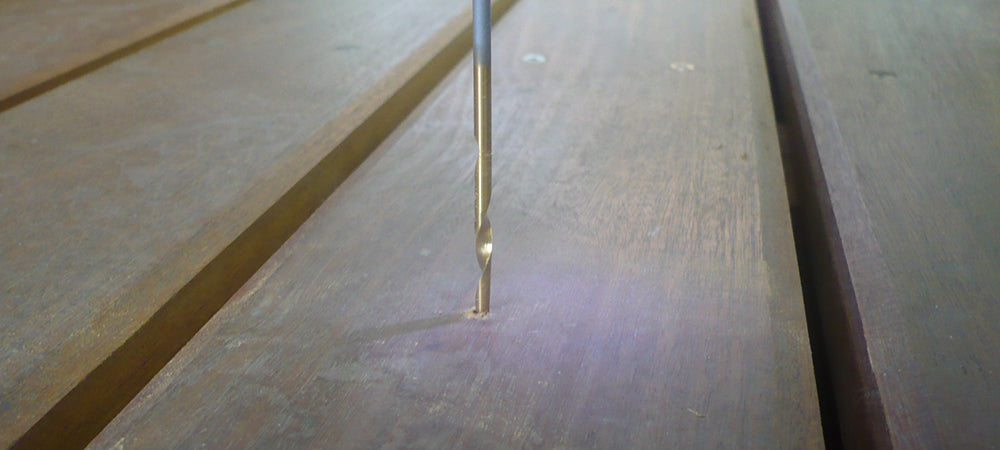

Makes pre-holes for nail or screw to prevent breaking the wood.
FEATURES
- Applicable for hard wood and laminated wood due the high durability of the H.S.S. Titan Coating Bit.
- Tapered and single flute bit style features good bite to the wood and smooth wood chip ejection.
Specifications
| Usage | Hard Wood Laminated wood Aluminum Plastics Particle Board |
|---|---|
| Material(s) | H.S.S. with Titan Coating |
| Recommended tool(s) | Quick Change Impact Driver (over 14.4v) Electric Power Drill |
| RPm Range | Less than 3,000rpm |
| Shank Shape |
 ：Hexagon |
Sizes
Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
Single
| Product No. | Size | Overall Length | Spiral Length | Shank Shape |
|---|---|---|---|---|
| 75HT-030 | 3 | 110 | 45 |
6.35
|
| 75HT-040 | 4 | 125 | 60 |
6.35
|
| 75HT-050 | 5 | 135 | 70 |
6.35
|
| 75HT-060 | 6 | 135 | 70 |
6.35
|
QTY(Inner Box)：12pcs

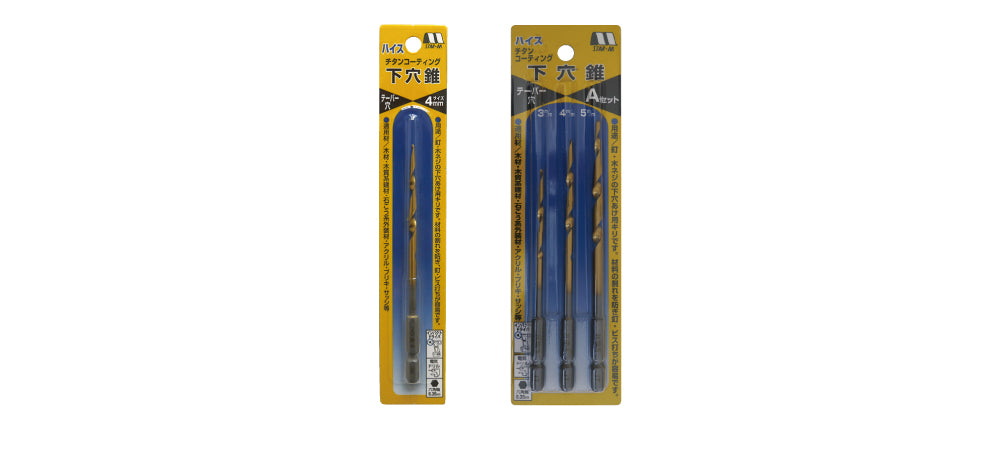

3pcs Set
| Product No. | Set Type | Set Description |
|---|---|---|

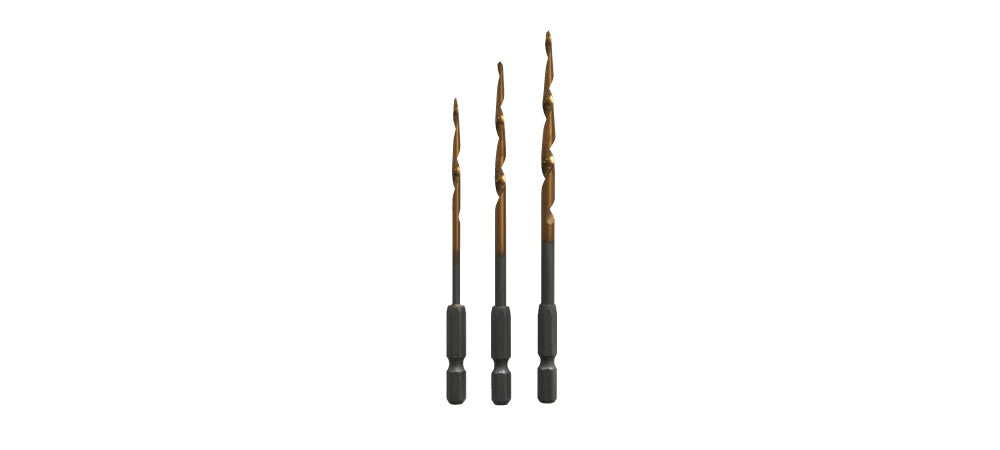

| 75HT-SA | A Set | 3・4・5mm (1pc) |
| 75HT-SB | B Set | 4・5・6mm (1pc) |
QTY(Inner Box)：6sets
Custom Auger Bits
Any Length and any size are available depending your needs. We can make various Auger Bits to comply with your needs.
