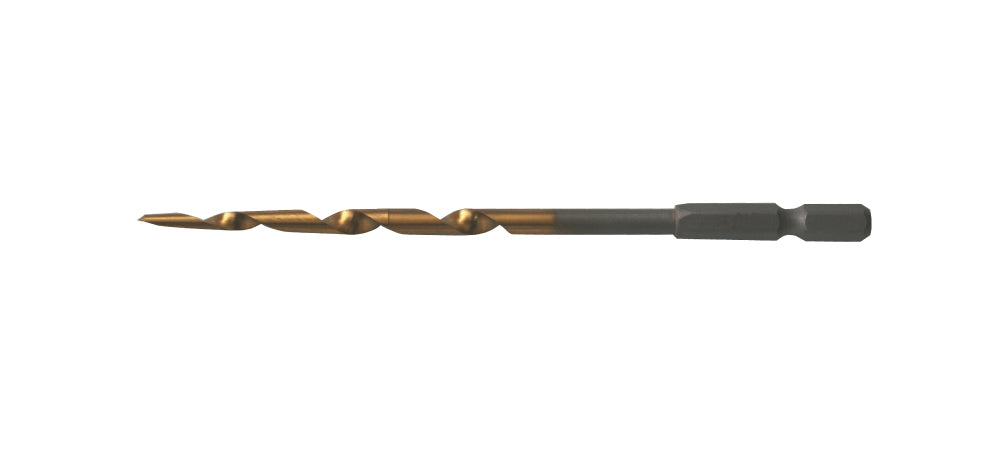

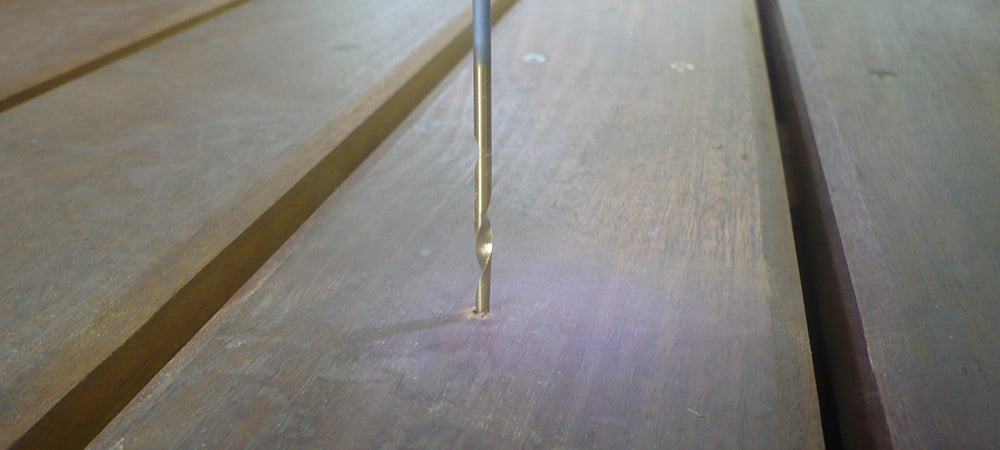

Makes pre-holes for nail or screw to prevent breaking the wood.
- Applicable for hard wood and laminated wood due the high durability of the H.S.S. Titan Coating Bit.
- Tapered and single flute bit style features good bite to the wood and smooth wood chip ejection.
Specifications
| Usage |
Hard Wood
Laminated wood
Aluminum
Plastics
Particle Board |
| Material(s) |
H.S.S. with Titan Coating |
| Recommended tool(s) |
Quick Change Impact Driver (over 14.4v)
Electric Power Drill |
| RPm Range |
Less than 3,000rpm |
| Shank Shape |
 ：Hexagon |
Sizes
Size：D Overall Length：L Spiral Length：SL Shank Shape：d Unit：mm
Single
| Product No. |
Size |
Overall Length |
Spiral Length |
Shank Shape |
| 75HT-030 |
3 |
110 |
45 |
6.35
|
| 75HT-040 |
4 |
125 |
60 |
6.35
|
| 75HT-050 |
5 |
135 |
70 |
6.35
|
| 75HT-060 |
6 |
135 |
70 |
6.35
|
QTY(Inner Box)：12pcs

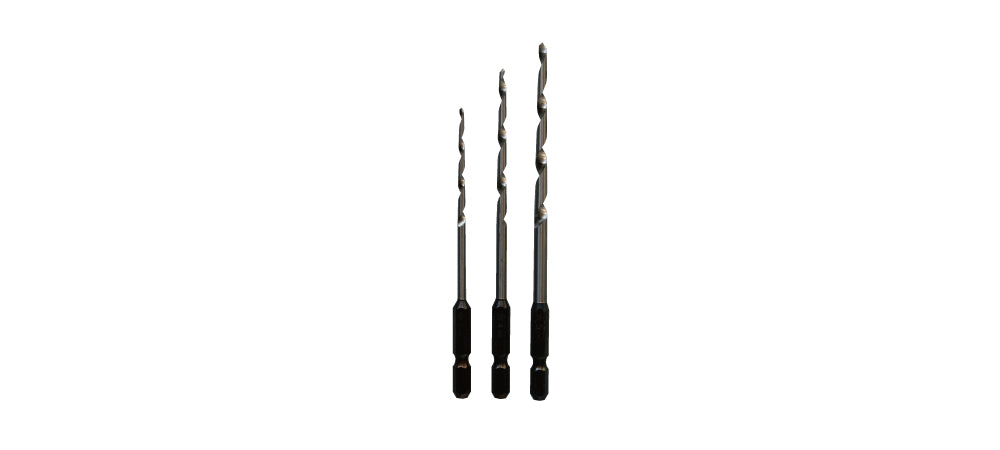

3pcs Set
| Product No. |
Set Type |
Set Description |
| 75HT-SA |
A Set |
3・4・5mm (1pc) |
| 75HT-SB |
B Set |
4・5・6mm (1pc) |
QTY(Inner Box)：6sets
Custom Auger Bits
Any Length and any size are available depending your needs. We can make various Auger Bits to comply with your needs.
